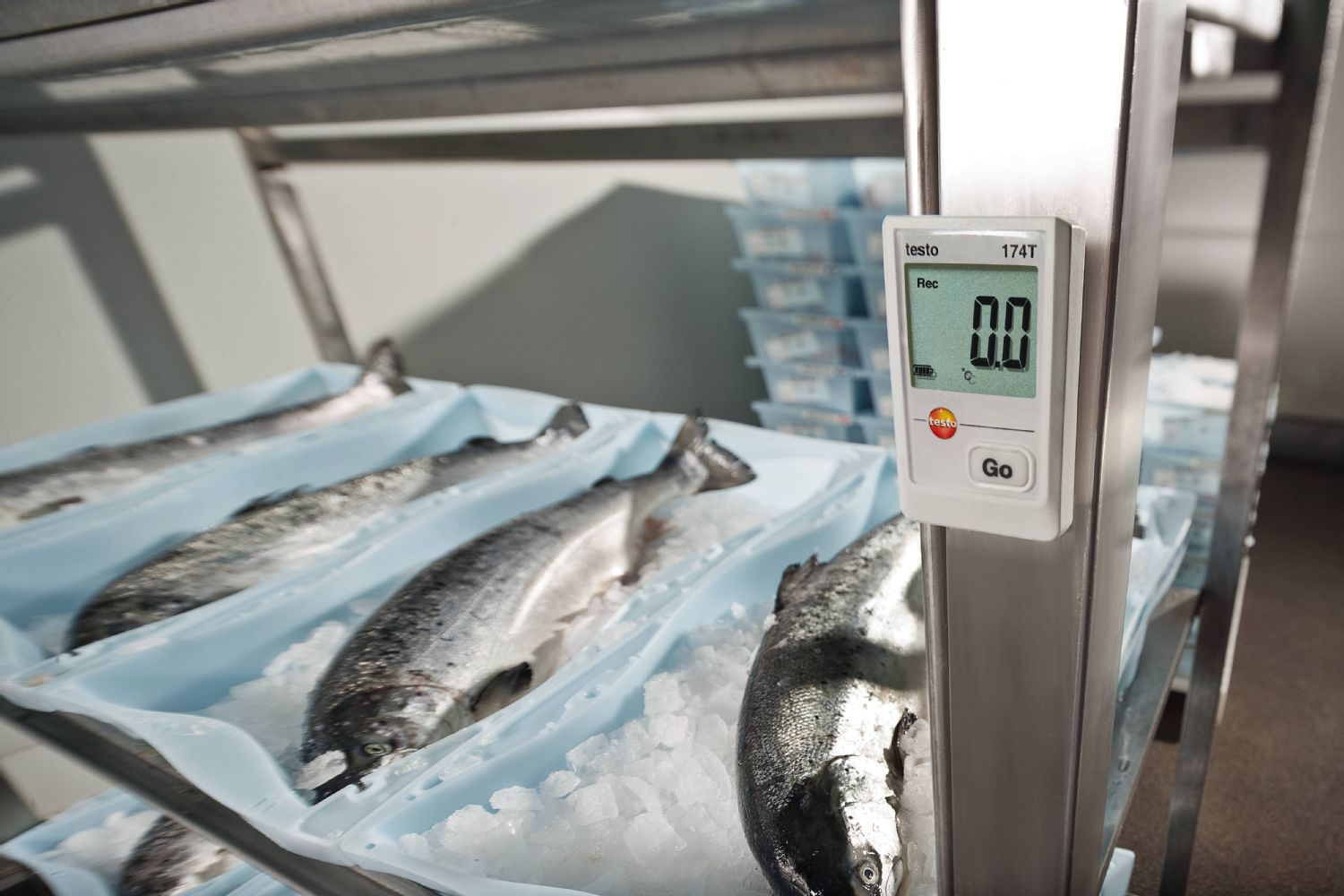

Mini data logger Testo 174

If case of food and pharmaceutical products, the storage temperature of the goods should

not exceed specific limit values under any circumstances. Testo 174T mini temperature

data logger helps you comply with the specified temperature ranges. It records the

temperature values reliably and thus ensures uninterrupted measurement data

recording and documentation.





 This is what the testo174T mini temperature data logger offers



You can save up to 16,000 readings with testo 174T mini temperature data logger securely.

Because measurement data you have saved will not be lost even when the battery is empty

 or being replaced. This means a high level of data security is guaranteed. You can easily

and quickly read the current temperature measuring value on its large display, along with

any possible violations of limit values. The integrated NTC sensor stands for a high level

 of accuracy. Its large measuring range, from -30 to +70 °C; and its compact design make

testo 174T temperature data logger a competent support for virtually every kind of

 temperature recording.



Testo174T mini temperature data logger meets the requirements of EN 12830 and is

HACCP-compliant, as well as having international HACCP certification, which means

it is ideally suited for measurements in the food industry (e.g. for storage temperature

 measurement). Particularly practical: the data logger has water spray and jet protection

according to IP 65. This enables it to be left in the measuring location even when warehouses

are being cleaned. The temperature data logger is also suitable for temperature control

in refrigerators or cold stores, because it can be used at temperatures down to -30 °C.





 Programming and analysis with the mini temperature data logger



You can choose between three software versions for programming and reading your

data logger and for analyzing the measurement data on the PC:



-   ComSoft Basic software –  available as a free download – for fast programming

of the mini temperature data logger and easy data analysis



-   ComSoft Professional software –  can also be ordered as an option – offers a variety

 of possibilities for detailed analysis of temperature readings



-   ComSoftCFR 21 Part 11 software –  can also be ordered as an option – the best solution

 for special requirements according to CFR 21 Part 11 in the pharmaceutical sector

You need a USB interface for programming and reading the mini temperature data logger.



Description:

The testo 174 mini data logger measures and logs the air temperature and relative humidity

 in storage rooms and offices continuously without interruption accurately and reliably.



USPs:

·     play of current temperature/ humidity value

·         High data security

·         Large display

·         Fast data analysis and documentation on a PC

·         Waterproof according to IP65

·         Measurement data memory for 16,000 measurement values

·         HACCP-compliant and certified according to EN 12830



Delivery Scope

Testo 174 mini data logger, including wall bracket, batteries (2 x CR 2032 lithium) and calibration protocol.





Temperature - NTC

Measuring range

-20 to +70 °C

Accuracy

±0.5 °C (-20 to +70 °C)

Resolution

0.1 °C

Humidity – Capacitive (testo 174H)

Measuring range

0 to 100 %RH*

Accuracy

±3 %RH (2 to +98 %RH) at +25 °C

±0.03 %RH/K ±1 Digit

Resolution

0.1 %RH

* Not for condensing atmospheres. For continuous use in high humidity (>80 %RH at ≤30 °C for >12 h, >60 %RH at >30 °C for >12 h), please contact us via our website.

General technical data

Weight

34 g

Dimensions

60 x 38 x 18.5 mm

Operating temperature

-20 to +70 °C

Product-/housing material

Plastic

Protection class

IP20

Channels

2 internal

Standards

2011/65/EU; EU-guideline 2014/30/EU

Measuring rate

1 min - 24 h

Battery type

2 x 3V button cell (CR 2032)

Battery life

1 year (15 min measuring cycle, +25 °C)

Memory

16,000 measuring values

Storage temperature

-40 to +70 °C



Temperature and humidity data loggerTesto 175

The testo 175 H1 data logger measures, monitors and logs the temperature and relative
 humidity in buildings and closed rooms. The 175 H1 can monitor the indoor climate in
buildings, storage facilities and archives and help create a comfortable
climate in the workplace.

The logger comes with an external humidity sensor (stub) for shorter reaction times
and a lock to prevent it from being easily stolen or tampered with.

In addition to the current temperature and humidity values, the logger can also log
 and display dew point values.  Other information including adjustable threshold
values, breached thresholds and remaining battery power can also be read off the
 large, clear display.



 Security and comfort on all levels
The data logger testo 175 H1 ensures a high level of data security and reliable
 measurements based on leading-edge technology. It has a super-size memory
that can save up to 1 million readings and an extended battery life of up to 3 years.
This gives you the freedom to read out the data at longer intervals, even when the
 measuring cycles are shorter. The triple AAA batteries included in the scope of
supply can be easily replaced by the user.


 Programming and Analyzing the data Loggers

Choose 1 of 3 software versions to program or read out the loggers or to analyze
 the measuring data you have obtained on your PC:

-  Software ComSoft Basic– included – allows you to program your logger and analyze
 the data quickly and easily

-  Software ComSoft Professional– optional – provides you with additional possibilities
 and a more detailed analysis of the temperature and humidity values

-  Software ComSoft CFR 21 Part11– optional – ideal for the special demands of the
pharmaceutical sector in compliance with 21 CFR Part 11

You will need a USB cable (not included in scope of supply) to program your data logger.
The data can be transferred to your PC either via USB cable or SD card. Both are
 optionally available as accessories which can be ordered along with your testo 175 H1.



Description:

The testo 175 data logger measures, monitors and logs the temperature and relative

humidity to monitor the indoor climate in buildings, storage facilities and archives

 and help create a comfortable climate in the workplace.

USPs:

·         High level of data security

·         Large, easily legible display

·         Measurement data memory for 1 million measurement values

·         Up to 3 years‘ battery life

·         Data transfer via USB cable or SD card

·         Permanently installed external capacitive humidity sensor



Delivery Scope

testo 175 data logger for temperature and humidity measurements,

 external humidity sensor (NTC/ capacitive humidity sensor), wall bracket,

lock, batteries, calibration protocol.




Technical Details:

Temperature - NTC

Measuring range

-20 to +55 °C

Accuracy

±0.4 °C (-20 to +55 °C) ±1 Digit

Resolution

0.1 °C

Humidity - Capacitive

Measuring range

0 to 100 %RH*

Accuracy

±2 %RH (2 to 98 ) at +25 °C

Resolution

0.1 %RH

* Not for condensing atmospheres.

Dewpoint (calculated)



Measuring range

-40 to +50 °Ctd

Accuracy

+0.03 %RH/K ±1 Digit

General technical data

Weight

130 g

Dimensions

149 x 53 x 27 mm

Operating temperature

-20 to +55 °C

Product-/housing material

Plastic

Protection class

IP54

Channels

2 internal

Life-time sensor

Long-term drift of the sensor <1% RH / year
(ambient temperature + 25 ° C)

Standards

EU-guideline 2014/30/EU; 2011/65/EU

Measuring rate

10 s - 24 h

Battery type

3 x AIMn type AAA or Energizer

Battery life

3 years at 15 min. meas. rate, +25 °C

Interface

mini usb, SD card slot

Memory

1,000,000 measuring values

Storage temperature

-20 to +55 °C

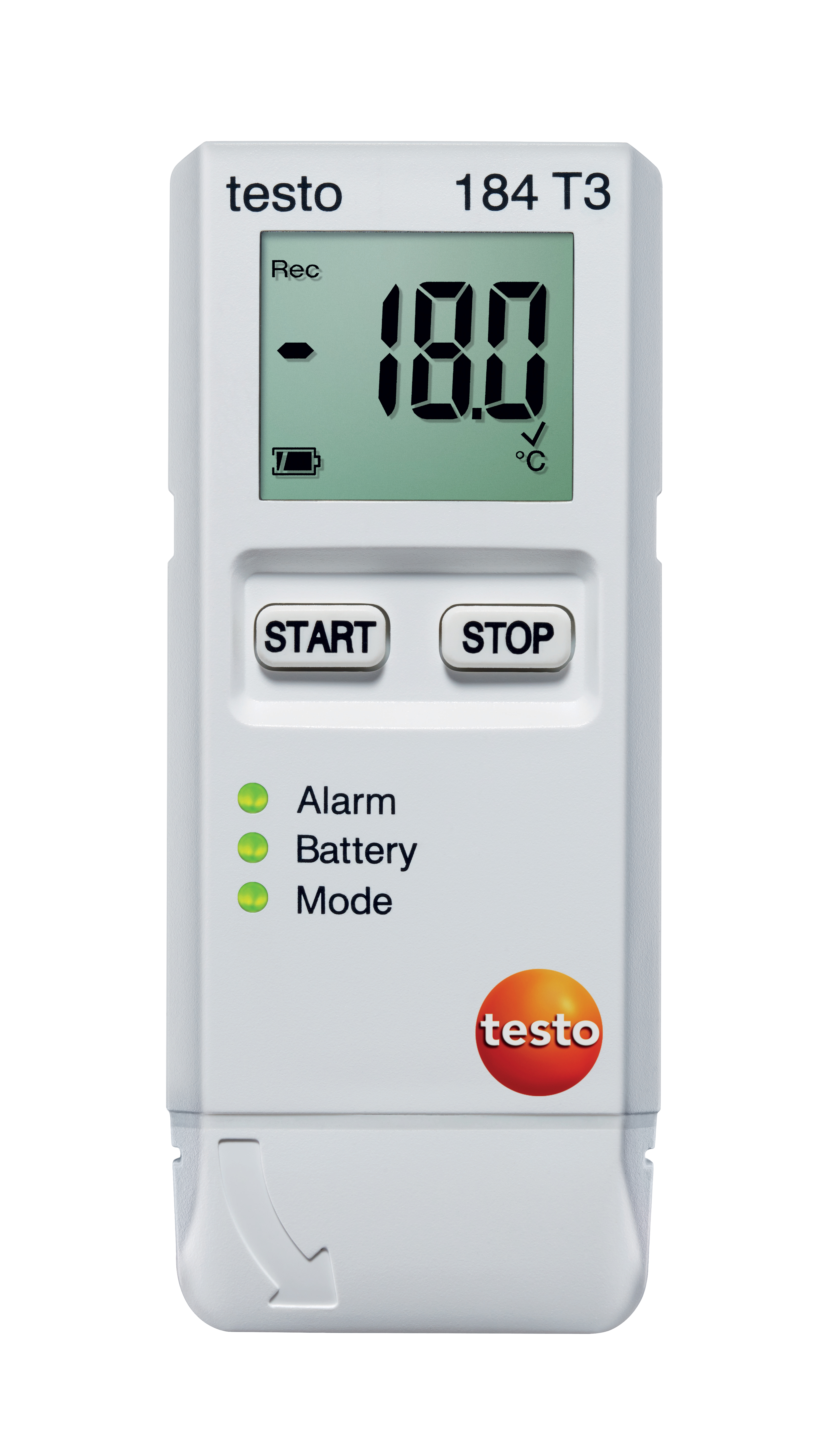

Transport data logger Testo 184

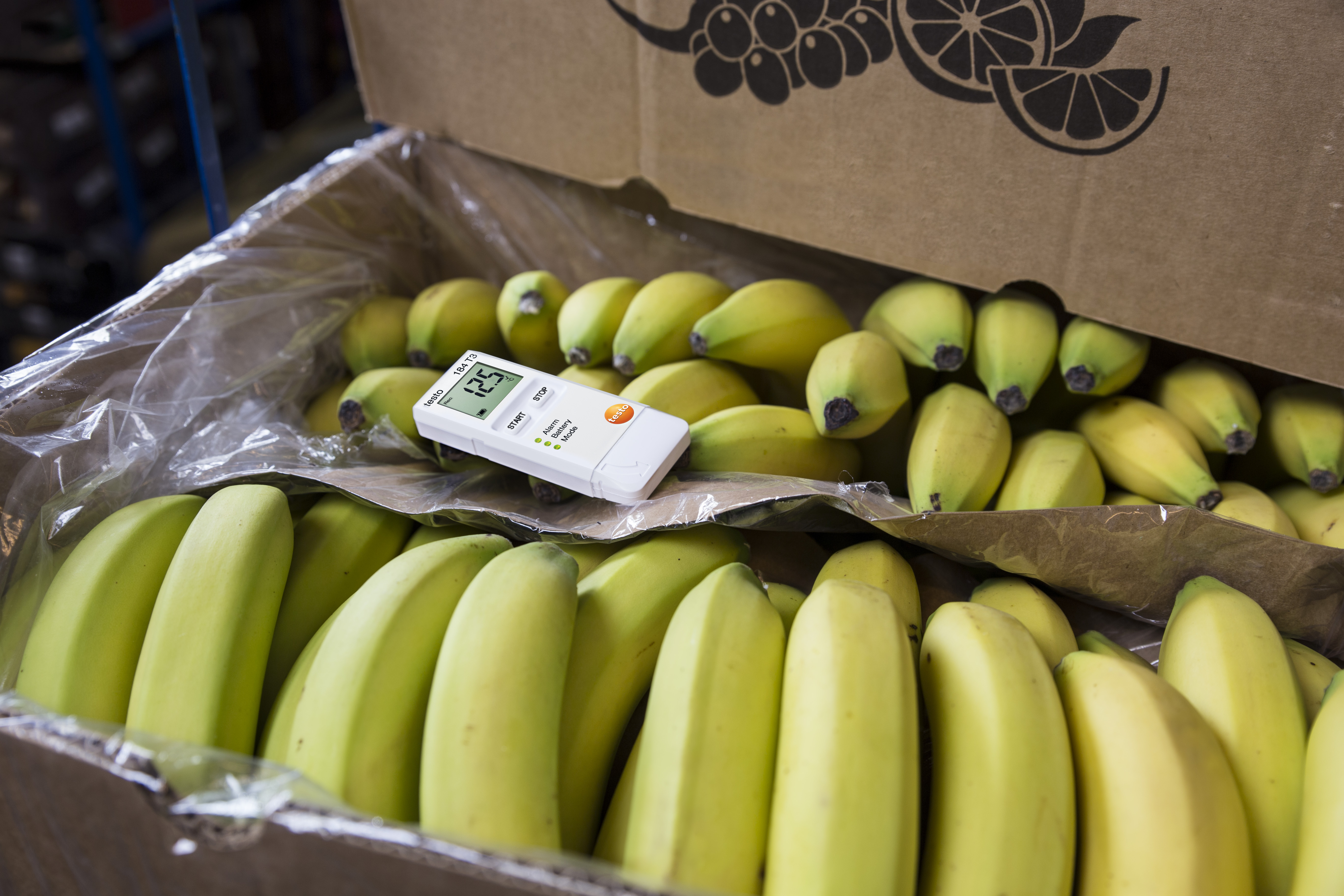

With the temperature data loggers testo 184 T3, you monitor the transport of sensitive
goods such as pharmaceuticals, foods or electronics, over an unlimited period.
More info on applications (link to tab Applications)  At their destination, a glance at
the display or the LEDs tells you whether the configured limit values have been
adhered to. In order to obtain detailed information, it is sufficient to connect the logger
 to a PC – a PDF report is immediately generated with all relevant data. In order for
 you to be able to work even more efficiently and conveniently with the data loggers,
all required files and information are stored directly and securely in the testo 184 T3:
 Configuration file, acceptance test certificate 3.1 according to DIN ISO 10204,
instruction manual and PDF report of your recorded data.

The measurement value store of the temperature data logger testo 184 T3 has a
capacity of 40000 measurement values. The measurement rate is freely selectable
from 1 min to 24 h. The battery has a life of 500 days. The temperature data logger testo
 184 T3 is supplied by a standard battery which can be exchanged by the user.
 testo 184 T3 is compliant with GxP, 21 CFR Part 11, HACCP and EN 12830. Testo is an
 ISO 9001-certified company, and ensures the adherence to the norms through internal
audits as well as accredited external audits.  All advantages at a glance:
1. Clear alarm indication  A glance at the the LEDs is enough to know whether limit
values have been violated during transport.
2. Easiest operation testo 184 T3 is intuitively operated, and can be used without
special training or previous knowledge:
The "Start" button begins data recording. "Stop" ends it.
3. Easiest configurationIn each testo 184 T3, a configuration file is stored, with which
 the configuration of the testo 184 T3 is childsplay – no download, no installation,
 no user interface and no additional costs.
4. Convenient readoutA PDF report with the transport data is created immediately
 on connection of the testo 184 T3 data logger to the USB interface of a computer.
This is suitable for long-term archiving according to PDF/A standard.
5. Mobile readout/printout on site All testo 184 T3 data loggers can be read out on site
 with an NFC-capable Android smartphone. Data transfer from the data logger to a
 compatible Testo fast printer (option) also functions wirelessly via NFC.
6. IT-safe The testo 184 T3 data loggers work securely without software installation
or download, so that IT problems are triggered neither by the firewall nor the virus scanner.



Description:

Transport data logger testo 184 helps in monitoring the transport of sensitive products,

such as pharmaceuticals, food or electronic items, both safely and conveniently.

USPs:

·         Clear alarm indication

·         Easiest operation

·         Easiest configuration without software installation

·         Convenient readout thanks to automatic PDF report

·         IT safe (no installation, no download)



Delivery Scope

Data logger testo 184, including acceptance test certificate 3.1 according to DIN ISO 10204 (stored in testo 184 T3 ), battery and 1 piece double-sided adhesive tape for easy attachment of the data logger, wall bracket (testo 184 G1)





Technical Details:

Temperature - NTC

Measuring range

-35 to +70 °C

Accuracy

±0.5 °C (0 to +70 °C)

±0.8 °C (-20 to +0 °C)

Resolution

0.1 °C

Reaction time

t90 = 30 min

Measuring rate

1 min to 24 h

Humidity - Capacitive

Measuring range

0 to 100 %RH

Accuracy

±2 %RH at +25 °C (20 to 80 %RH)

±3 %RH at +25 (< 20 and > 80 %RH)

±1 %rF Hysterese

±1 %rF/year Drift

Resolution

0.1 %RH

Measuring rate

1 min to 24 h

Shock

Measuring range

0 to 27 g

0 to 265 m/s²

Accuracy

±(0.1 g + 5 % of mv)

±1 / 1 / 1 m/s²

Resolution

0.1 g

1 m/s²

Measuring rate

1 s

General technical data

Weight

44 g

Dimensions

97 x 40 x 12 mm (LxWxH)

Operating temperature

-20 to +70 °C

Product-/housing material

ABS

Protection class

IP30

System requirements

Adobe® Acrobat Reader

Product colour

white

Standards

CE 2014/30/EU; DIN EN 61326-1:2013;
DIN EN 50581:2013; 21 CFR Part 11;
HACCP International

Channels

5 internal

Operating time

Unlimited

Authorizations

CE

Alarm function

by LED and Display

Battery type

Lithium battery CR2450, 3V, exchangeable

Battery life

120 days (at +25 °C and 15 min. meas. cycle)

Display type

segment LCD

Display size

one-line

Display ligthing

no

Display



Interface

USB; NFC

Memory

64,000 measurement values
(temperature and humidity);
1,000 measurement values (shock)

Storage temperature

-55 to +70 °C

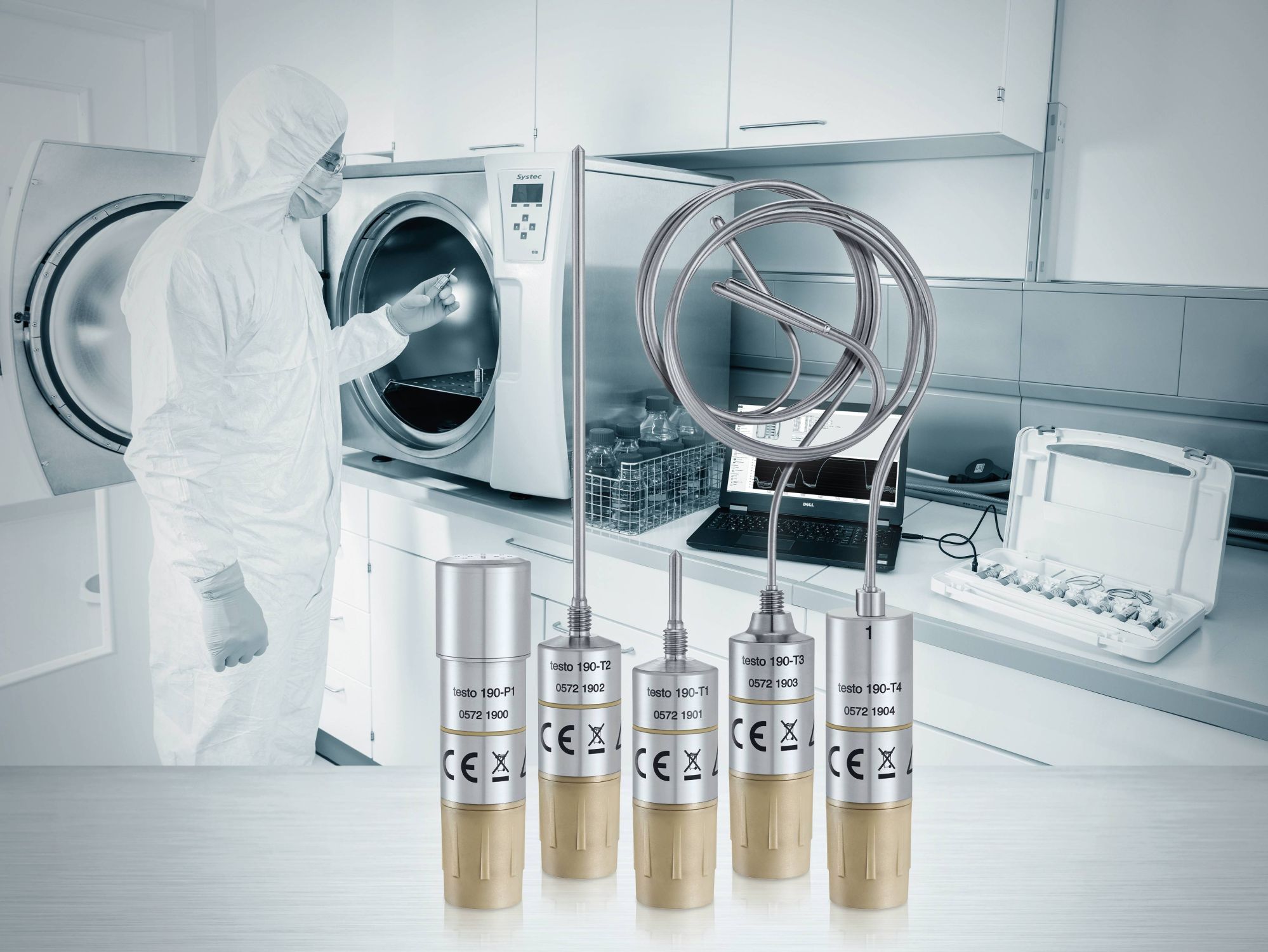

Testo 190-T4, CFR temperature data logger

Designed for the pharmaceutical industry, the testo 190-T4 CFR temperature data logger for sterilization and freeze-drying processes has two long, flexible probes that also enable you to measure in corners. It is particularly suitable for monitoring the temperature in autoclaves, containers, liquids, or on surfaces, for example on plates in freeze-drying systems.

USP's :
  • Two long, flexible probes for precise temperature measurement in sterilization and freeze-
     drying applications and for determining the acclimatization time between core and outer
     temperature.
  • Durable, robust, reliably tight, even after changing the battery.
  • Simultaneous configuration and readout of several CFR data loggers via the
     multi-function case.
Long description:
The qualification and validation of sterilization and freeze-drying processes is subject
 to high requirements and is a key element of quality assurance in the
 pharmaceutical industry.

Our reliable and robust CFR temperature data logger supports you in meeting these
requirements efficiently.
This is what the 190-T4 CFR temperature data logger offers


High-precision: precise CFR data logger with two long, flexible probes
 (length 775 mm, Ø 1.5 mm),
reading the memory of 30,000 readings per channel Two long, flexible probes:
 ideal for sterilization applications, measuring surface temperature in
 freeze-drying systems and determining the acclimatization of the time
 between core and outer temperatures. In combination with the freeze dryer
probe holder (please order separately), the surface the temperature of freeze-drying
systems can be accurately measured Slim design: with a diameter of 20 mm, the
loggers are ideal for use in tight objects or cramped conditions
Robust and durable: high-quality materials and innovative construction make the
CFR data logger particularly robust
 and durable. Thanks to hermetically sealed measuring technology in a separate
 stainless steel housing, the CFR data logger impresses due to its reliability
 and maximum robustness
Battery change in seconds: the practical thread enables the battery to be screwed
 onto the CFR
data logger and changed intuitively and securely without using any tools
Reliably tight: the CFR data logger remains 100% tight even after the batteries are changed.
The battery housing is coated in highly temperature-proof polyether ether ketone (PEEK)
Flexible height: the size of the CFR data logger can vary with two different types of battery.
 The small battery makes the logger's dimensions particularly compact. The larger battery
 (included in the scope of delivery) is suitable for measurements at low temperatures, for
 example in freezer systems

 Programming, readout, and analysis of the data logger Very practical to use:
 in addition to being used for storage, the multifunction case can also
be used for parallel programming and readout of up to 8 data loggers simultaneously.
This means you do not need any additional readout unit and you also save time.

With the specially developed 21 CFR Part 11-compliant testo 190 CFR software
(please order separately) you can program and read out the data logger, as well as
analyzing the measurement data, on the PC. The clear software structure
guides you intuitively through the process step by step. During input,
it provides help at critical points through warnings. The software thus enables even
inexperienced users to carry out the measurement process easily.

Delivery scope:
1 x testo 190-T4 CFR data logger, including battery large, distance adapter
for testo 190 programming and readout the unit, thread extension, calibration protocol,
 and an instruction manual.


Technical DataTemperature:

Pt1000 Measuring range

 -50 to +140 °C

Accuracy

±0.2 °C (-50 to -40 °C)

±0.1 °C (-40 to -140 °C)

 Resolution

 0.01 °C

General technical data Dimensions

20 x 72 (ø x height)

 Operating temperature

-50 to +140 °C

Product-/housing material

Stainless steel, PEEK plastic

Length probe shaft

 775 mm

 Length probe shaft tip

25 mm

 Diameter probe shaft

1.5 mm

Diameter probe shaft tip

3 mm

Channels

 2

 Measuring rate

1 s to 24 h

Authorizations

CE

Battery type

 1/2 AA lithium

Battery life

2,500 operating hours (measuring cycle 10 sec at +121 °C)

Memory


30,000 measurement values / channel

Storage temperature

 -20 to +50 °C

Testo Saveris 2-H1-WiFi data logger

The WiFi data logger testo Saveris 2-H1 allows you to monitor the temperatures and humidity in refrigerated and work- or storerooms. The temperature and humidity values measured with the integrated probes are reliably recorded over long periods, and transmitted directly to the Testo Cloud (online data storage) via your wireless LAN. You can access these readings at any time, anywhere, using your internet-enabled smartphone, tablet, or PC.


USP's:

  • Automated temperature and humidity monitoring with integrated probe
  • WiFI data logger system with easy installation and operation
  • Automated temperature and humidity monitoring with integrated probe
  • Limit value violation alarms by e-mail or (optionally) SMS.


Long description:

The testo Saveris 2 WiFi data logger system is the easy, versatile and reliable solution for the measurement and monitoring of temperature and humidity values in your storage, refrigerated and work rooms. Installing the system is child's play and can be carried out either via a browser or with the testo Saveris 2 App.





 Humidity and temperature monitoring with testo Saveris 2



The humidity and temperature monitoring system consists of at least one WiFi data logger and a Cloud access (online data store). As a component of this data logger system, the testo Saveris 2-H1 temperature and humidity data logger with integrated temperature and humidity probes stores all measured values and transmits them directly by wireless LAN to the Testo Cloud. You can use the alarm function to receive immediate warnings by e-mail or SMS (optional) when limit values are violated.






The Testo Cloud packages: Basic (free) and Advanced



The Testo Cloud is the core operating element for setting up your testo Saveris 2 system. Here you can configure your WiFi data loggers, set limit value alarms and analyze your measurement data. You can access all measuring values and analysis functions anywhere and at any time with an internet-capable smartphone, tablet or PC. You must first register at www.saveris.net to have access to the Testo Cloud.


Delivery scope:

testo Saveris 2-H1 WiFi data logger

Including free Cloud access (basic functionality)

Micro USB cable

Wall bracket with lock

Batteries (4 x AA AlMn Mignon batteries)

Short instructions

Calibration protocol


Technical Data:

Temperature - NTC Measuring range

 -30 to +50 °C

Accuracy

 ±0.5 °C

 Resolution

 0.1 °C

 Humidity - Capacitive Measuring range

 0 to 100 %RH

  Accuracy

 ±2 %RH

 Resolution

0.1 %RH

 General technical data Dimensions

 115 x 82 x 31 mm

 Operating temperature

 -30 to +50 °C

Protection class

 IP30

Communication rate

Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

WLAN Connectivity

Signal transmission: wireless; frequency band: 2.4 GHz; supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: without encryption, WEP, WPA, WPA2, WPA2 Enterprise - The data loggers communicate via the standard protocol MQTT and are SNTP time synchronization-capable.

Measuring rate

Dependent on Cloud licence; Basic: 15 min … 24 h / Advanced: 1 min … 24 h

Power supply

 4 x AA AlMn batteries; mains unit optional; for temperatures below -10 °C please use Energizer batteries 0515 0572

Memory

 10,000 measurement values / channel

Battery life

 12 months (typical value, depending on the wireless LAN infrastructure) at +25 °C, 15-minute measuring cycle and standard communication cycle at -30 °C, 15-minute measuring cycle and standard communication cycle with Energizer batteries 0515 0572

Memory


30,000 measurement values / channel

Storage temperature

-40 to +70 °C (without batteries)



 Weight:

250 g



© 2021 Copyrights Bartem Instruments, All Rights Reserved.
