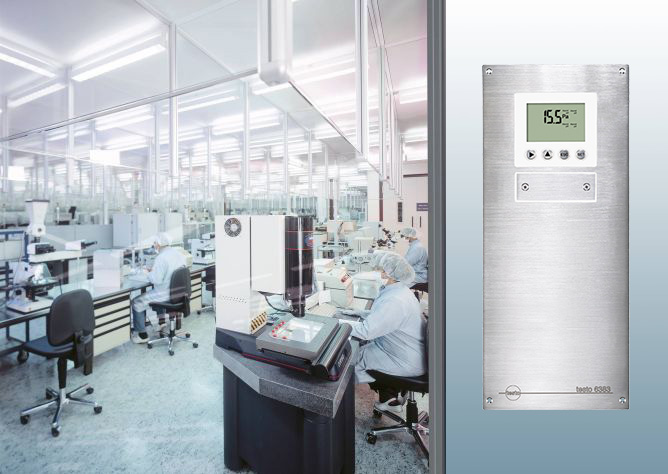

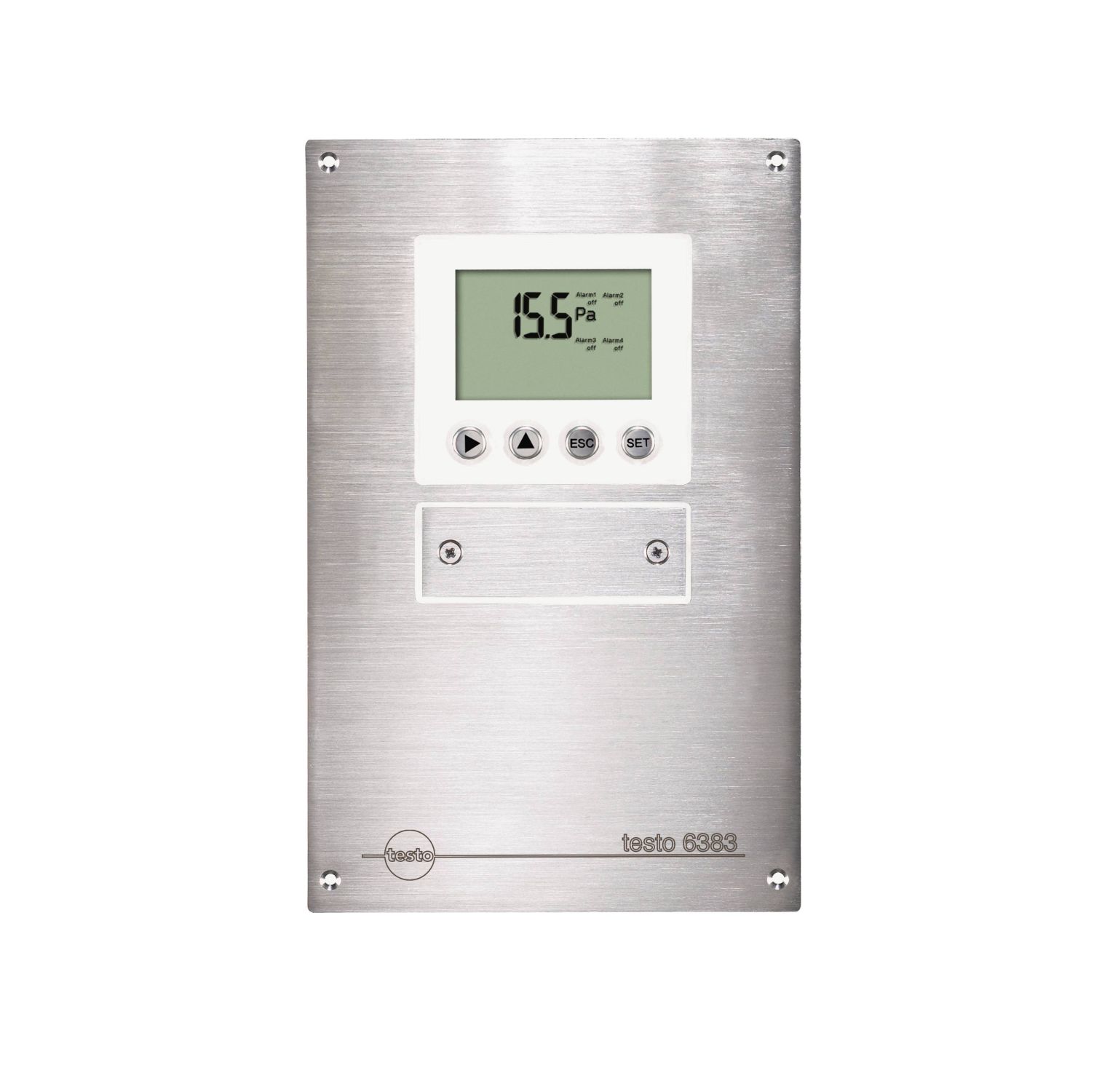

Testo-6383


Differential pressure transmitter in cleanroom-
conform panel design


USPs:

Flat housing enables flush surface integration in the cleanroom wall
Low measuring range from 10 Pa ensures very high precision at the lowest pressures
Pressure transmitter for measuring differential pressure, as an option: humidity and temperature
Automatic zero-point adjustment guarantees high temperature-independent accuracy and long-term stability


Long Description:

The differential pressure transmitter testo 6383 was developed especially for monitoring low differential pressures in the measuring range from 10 Pa to 10 hPa. In cleanroom technology, the maintenance of positive pressure prevents the entry of contaminated air in critical zones. Thanks to an optional internal or external probe from the probe series 6610, the additional recording of humidity and temperature with one instrument is also possible.The testo 6383 is particularly outstanding thanks to the automatic zero-point adjustment which ensures high accuracy and long-term stability.

The integrated self-monitoring and early warning function also guarantee the operator high system availability. Measurement of differential pressure; optional: humidity and temperature

Flat housing allows flush surface integration in the cleanroom wall

Ethernet, relay and analog outputs allow optimum integration into individual automation systems

Self-monitoring of the transmitter and early warning function guarantee the high system availability

The P2A software for parameterization, adjustment, and analysis saves time and costs in commissioning and maintenance. Configurable alarm management with adjustable response delay and alarm acknowledgment

Delivery Scope

testo 6383 differential pressure transmitter with cleanroom-compliant panel design, optional humidity/temperature recording, selectable measuring range between 10 Pa and 10 hPa, selectable signal outputs, and optional display (depending on the configuration).




Testo -6441

Temperature and humidity transmitter for critical applications

USPs:

· Measurement of norm volume flow in the measuring range 0.25 to 700 m3/h (DN15 to DN50 or ½’’-2’’); consumption quantity in m3; media temperature in °C
Highest flexibility thanks to different signal outputs:

- Analog output 4 to 20 mA (4-wire)

- Pulse output

- 2 switch outputs (parameterizable: consumption or volume

flow-dependent, opener, closer, hysteresis, window)
Built-in totalizer, even without additional analysis unit
Operating menu with LED display

Long Description:

In industrial companies, compressed air is an important source of energy, but one which can also incur high costs. Precise measuring and control technology creates transparency when it comes to compressed air consumption and can help you save energy, reduce costs and implement a targeted environmental management system (e.g. as per ISO 50.001 or ISO 14.001).

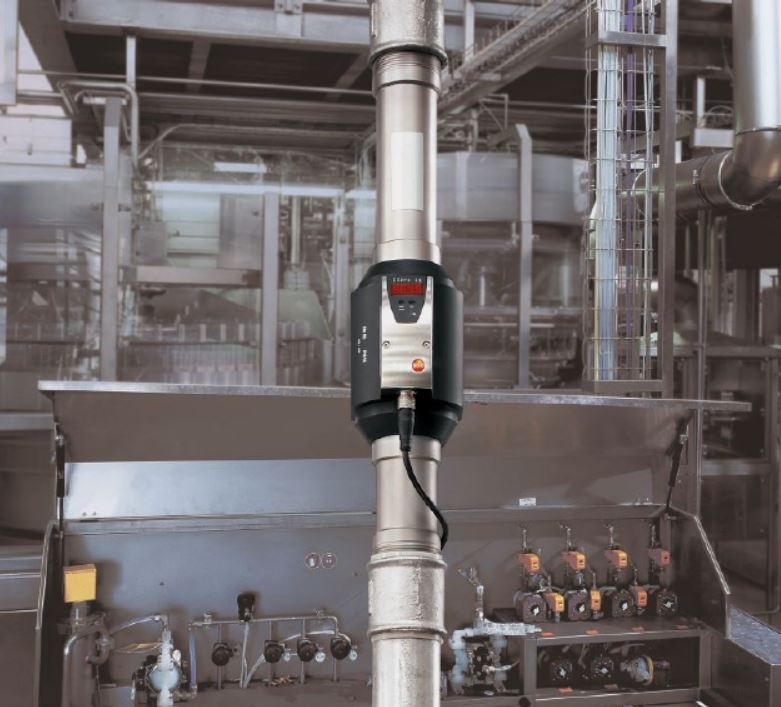

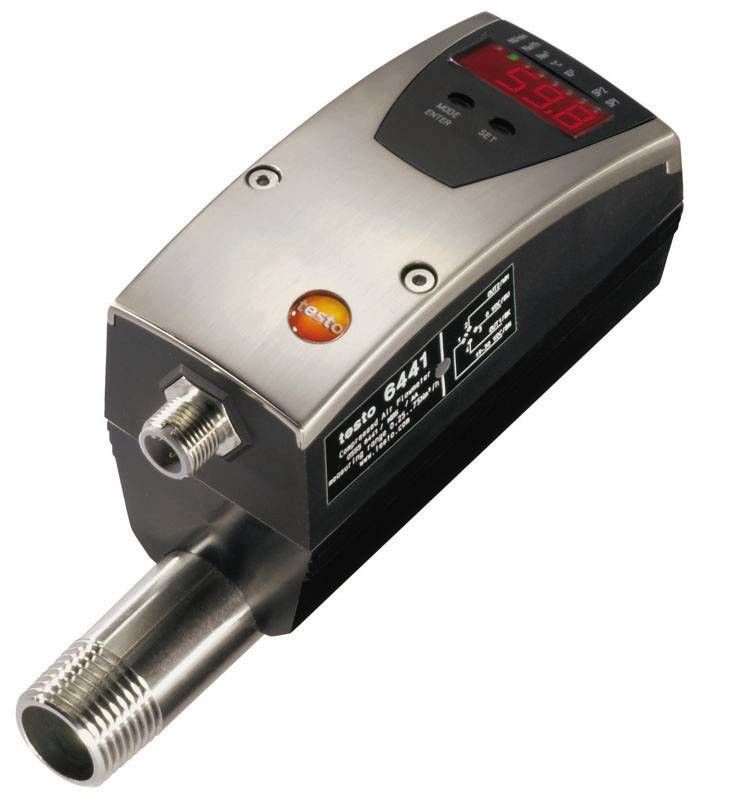

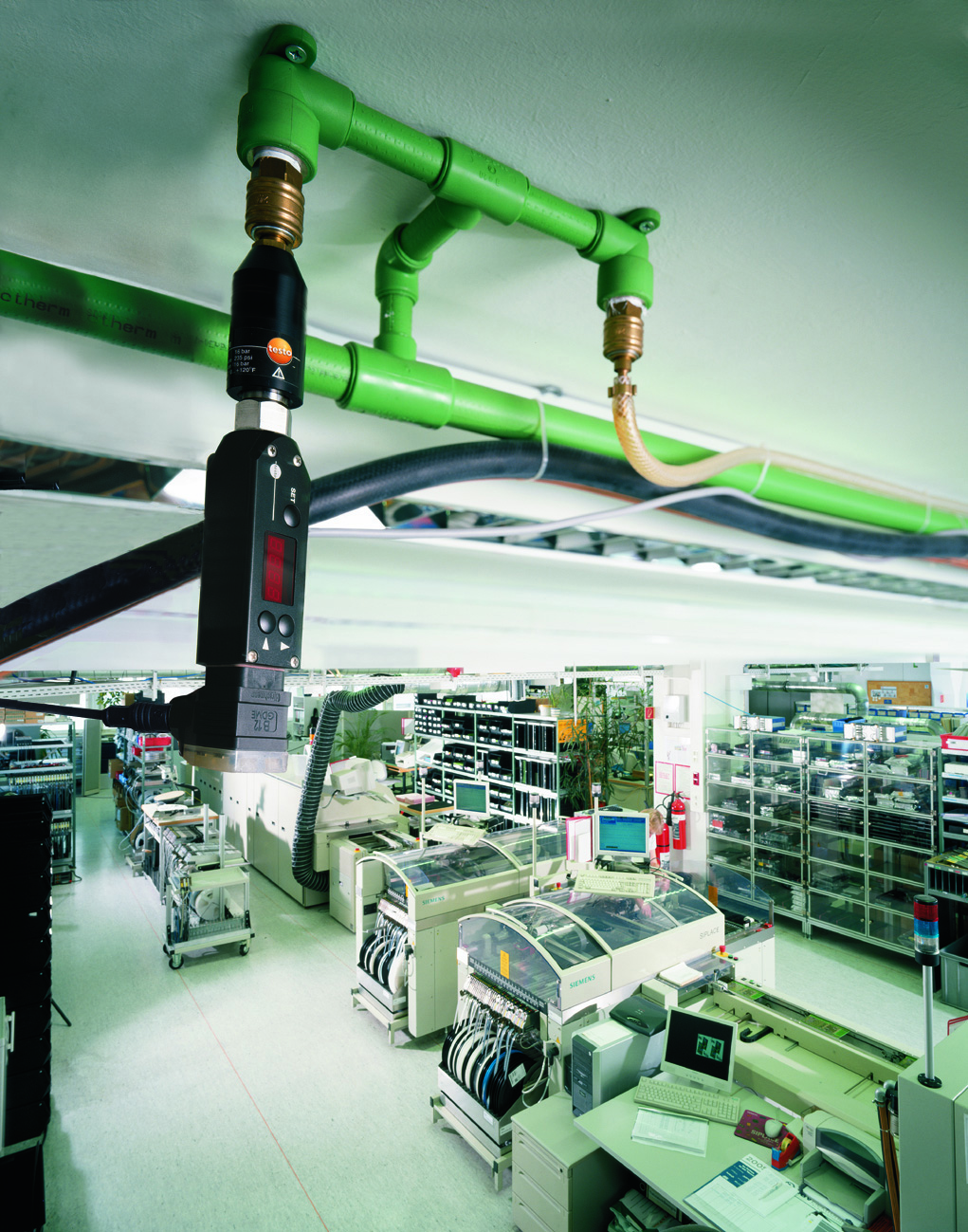

The testo 6441 compressed air flow meter enables you to carry out accurate compressed air consumption measurements, consumption and leak monitoring, and flow measurements in your compressed air system. The compressed air flow meter can also be used to carry out a peak load analysis in order to determine whether you are generating compressed air of sufficient capacity. Overall, these measures can help you find the potential for savings or prevent unnecessary investment costs.


Overview of the technical advantages offered by the testo 6441 compressed air flow meter


The testo 6441 compressed air flow meter is also a transmitter, which converts the measured parameter into a standardized electrical signal. The transmitter can, therefore, be integrated into systems (e.g. compressed air systems), making it a key instrument in measuring and control technology. The testo 6441 compressed air flow meter also offers the following advantages:


-  Ultimate flexibility with a variety of signal outputs: analog output, pulse output, 2 switching outputs. You will, therefore, be equipped for any kind of application, whether that is consumption measurement, consumption or leak monitoring or even flow measurement

-  Integrated totaling function: the practical totalizer means that no additional analysis units are needed to calculate the total consumption

-  Ultimate accuracy: the precisely defined inner diameter (DN15) enables adjustment to standard volumetric flow, providing a high degree of measuring accuracy. This is an advantage compared with standard penetration probes, which calculate volume flow on the basis of measured flow and indicated pipe diameter – a procedure that is more vulnerable to error than measurement using the compressed air flow meter

-  Easy operation with a high degree of flexibility: parametrization of signal outputs, switching of physical units, signal delay, signal attenuation are all possible

-  Measurement according to the calorimetric principle: no pressure loss during measurement

-  Other advantages: no temperature compensation required, quick response time, robust sensor, optimized accuracy thanks to integrated inflow and outflow sections.

Delivery Scope:

testo 6441 compressed air flow meter with integrated inflow/outflow section, diameter DN15 (½"), with analog, pulse and switching output.

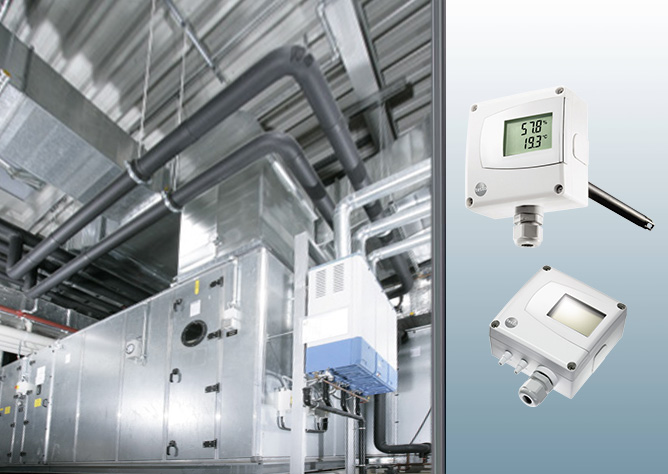

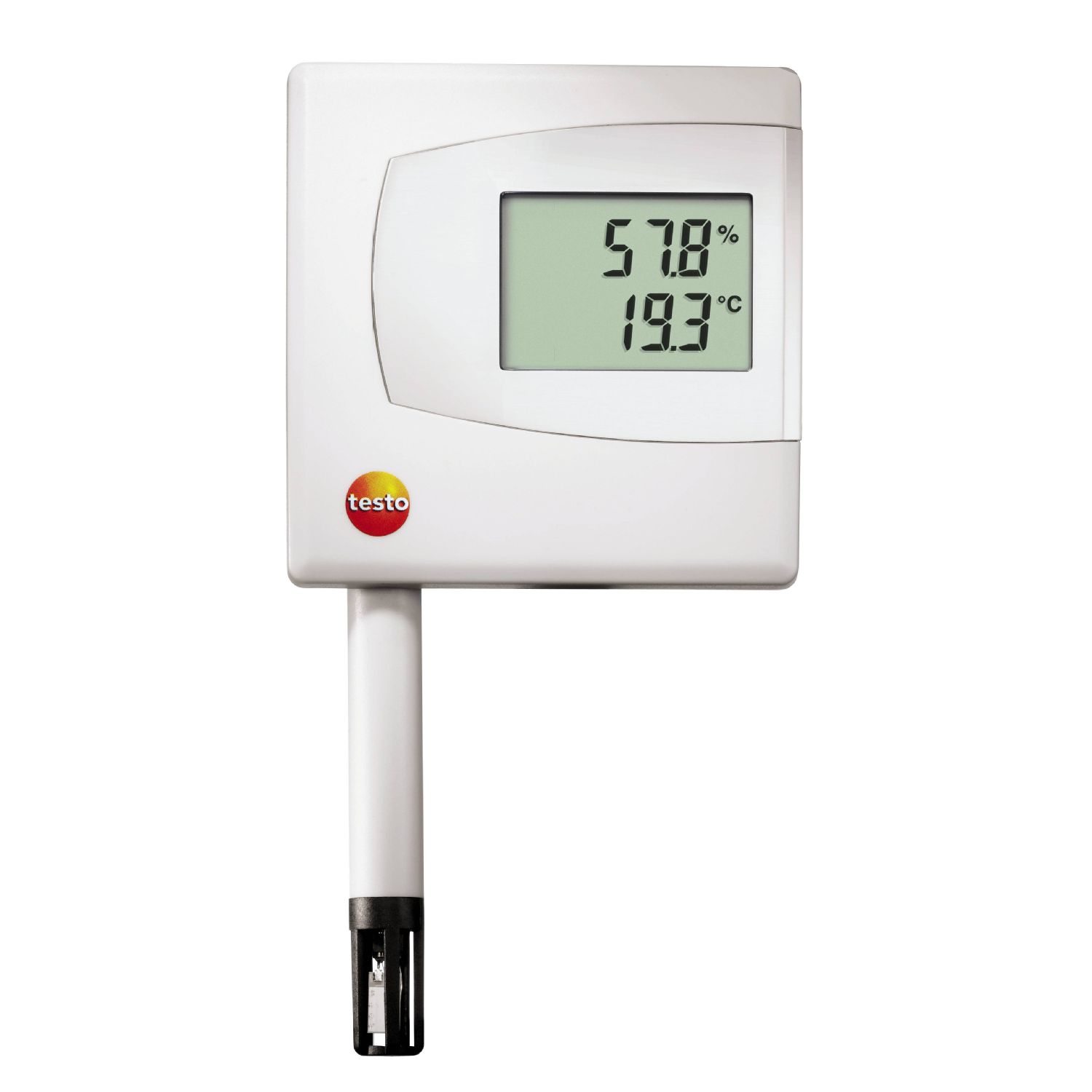

testo 6621

The air conditioning humidity transmitter

USP's:
Transmitter with 2 analog outputs (temperature/humidity) <br>High-precision Testo humidity sensor with long-term stability<br>Adjustment without disassembling the transmitter<br>P2A software for parameterization, adjustment and analysis.

Long description:
Adjustment on-site: Fast and precise via the external interface!
Of interest not only to in-house technicians or Facility Managers, but increasingly also to the responsible plant constructors: Which follow-on costs arise as a result of this transmitter?
Good news from Testo: The testo 650 or testo 400 reference instruments can be connected using the adapter 0554 6022 via the external interface – without opening the transmitter. A few operating steps in the testo 400 or testo 650 menu suffice to adjust the testo 6621 transmitter. Conclusion: Saved time and lower operating costs!

A broad variety of the testo 6621 transmitter is available. Depending on the application in a room or in a duct, the corresponding designs can be selected. A display and an external probe are available as options. You can choose between the housing colors grey and white. The testo 6621 is persuasive in technical terms thanks to the patented humidity sensors that guarantee the highest accuracy. The sensors and the analog outputs can be adjusted, analyzed and parameterized via the external interface using the P2A software.
The testo 6621 is a high-performance transmitter for a low price. It meets the increasing requirements in automated building services in terms of accuracy, reliability and safety and thereby saves energy costs.

- Highly accurate testo humidity sensor with long-term stability (±2.0% RH)
- Optional 2-line LCD display
- P2A software for parameterization, adjustment and analysis, saves time and costs in commissioning and maintenance
- Optimum calibration concept thanks to adjustment of the entire signal chain (1-point, 2-point and analog adjustment)
- Adjustment without dismantling the transmitter
- 2 analog outputs (humidity/temperature), option of 1 passive humidity and temperature analog output.

Delivery scope:
testo 6621 temperature and humidity transmitter as a wall or duct version, with selectable signal outputs, 2-line display (optional), external interface for adjustment and commissioning.

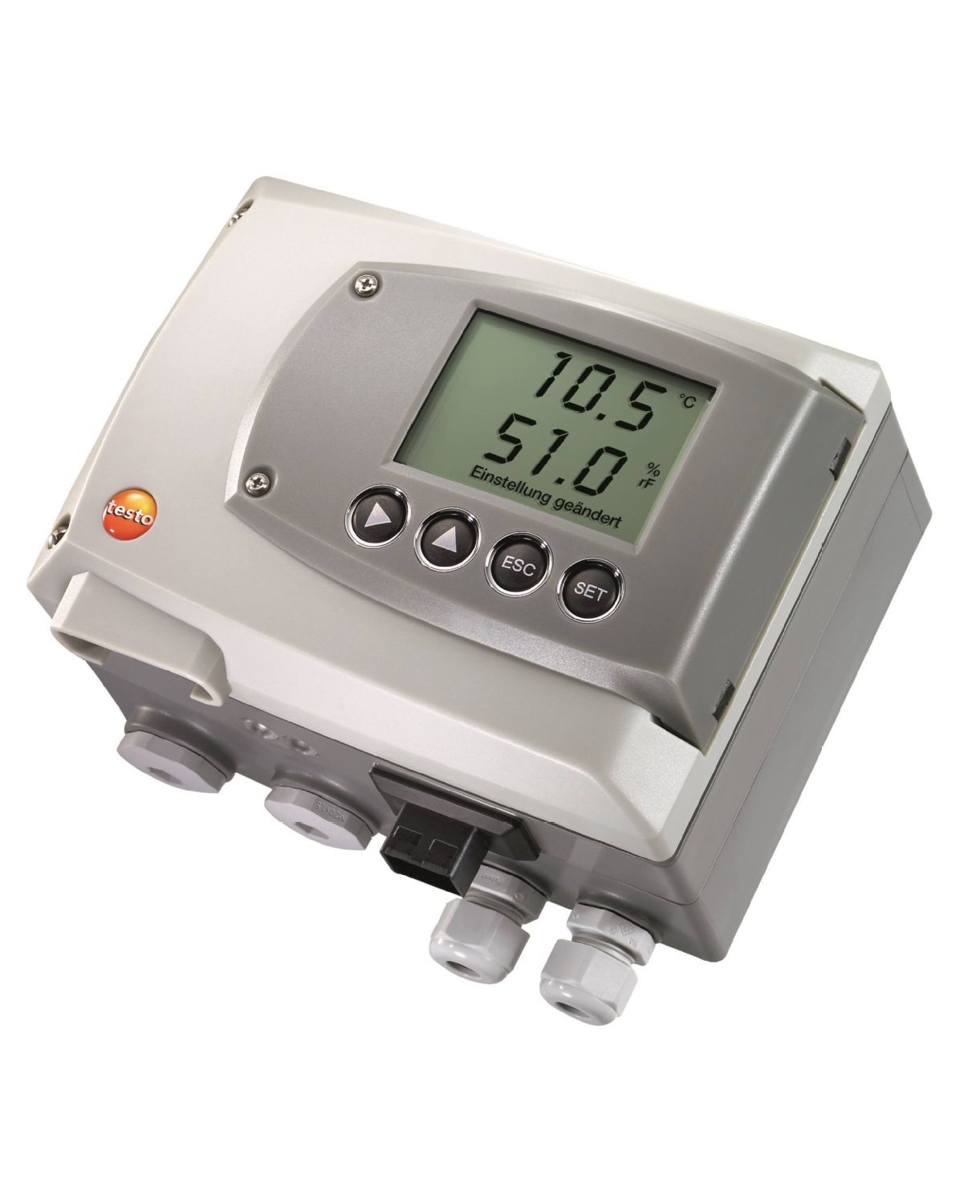

testo 6651

Humidity transmitter for critical climate applications.


USP's:
High-precision Testo humidity sensors with long-term stability (±1.7 % RH) can be ordered for the transmitter <br> Ethernet, relay and analog outputs enable optimum integration into individual automation systems <br> High-quality digital probes (can be ordered) and an intelligent calibration concept <br> Self-monitoring and an early warning function ensure high system availability.

Long description:
Not all measurement problems can be solved with "simple" transmitters. The testo 6651 meets special challenges. When combined with the probe series testo 660x, the testo 6651 becomes the first choice in demanding air conditioning technology as well as in many other applications. Optimum adjustment concept thanks to adjustment of the entire signal chain incl. analog adjustment Ethernet, relay and analog outputs allow optimum integration into individual automation systems Self-monitoring and early warning guarantee high system availability. Calculation and presentation of the humidity parameters relative humidity absolute humidity and dewpoint. P2A software for parameterization, adjustment and analysis saves time and costs in commissioning and maintenance
Display with multi-language display. High-quality plastic housing.

Delivery scope:
testo 6651 temperature/humidity transmitter for critical climate applications with selectable signal outputs, optional display, optional Ethernet module and optional relay (depending on the configuration).

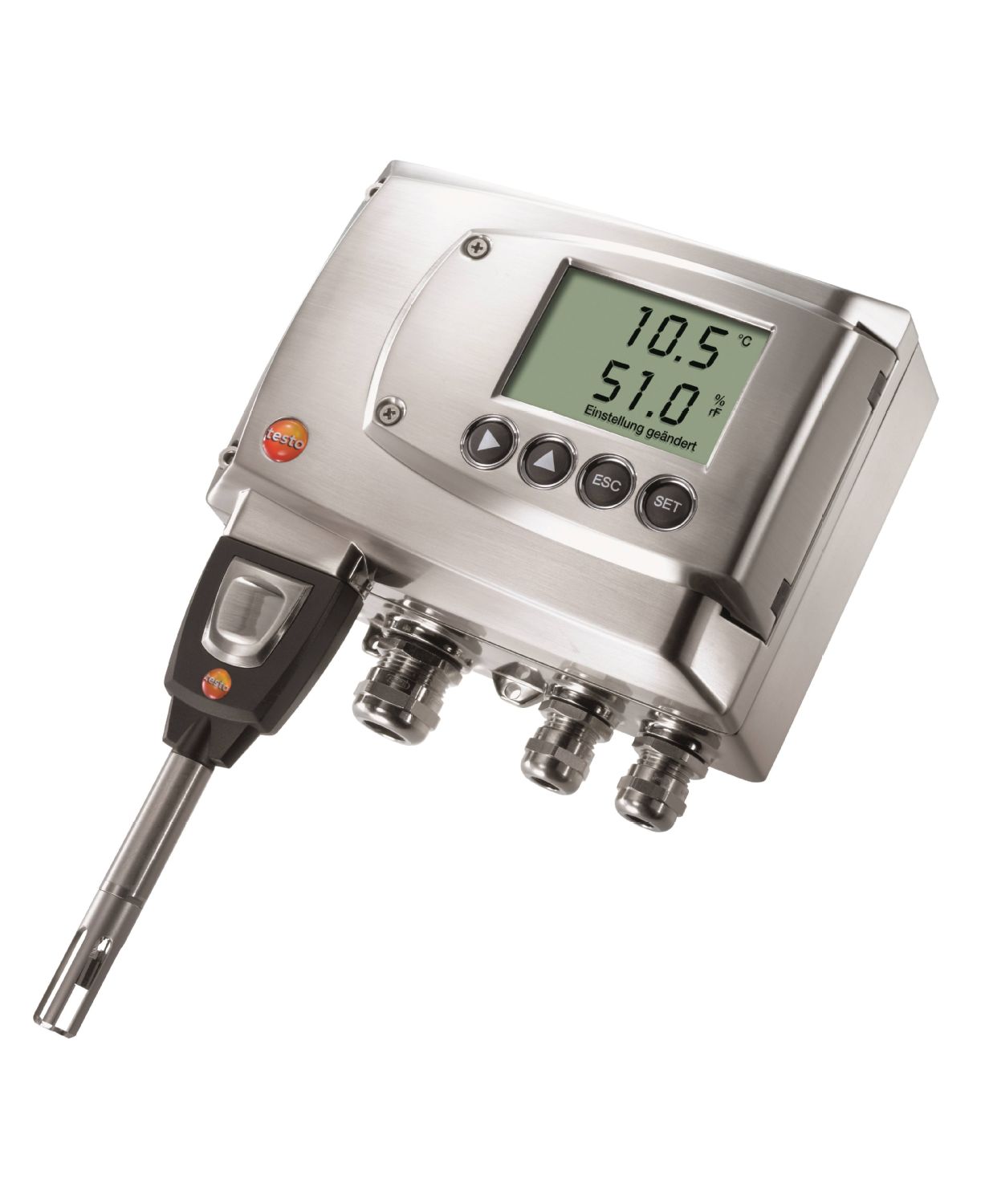

testo 6681

Temperature and humidity transmitter for critical applications.


USP's:
High-precision Testo humidity sensor with long-term stability for high humidity applications (optional)<br>Ethernet, relay and analog outputs enable optimum integration into individual automation systems<br> High-quality digital probes and an intelligent calibration concept<br>Self-monitoring and an early warning function ensure high system availability.

Long description:
Industrial humidity measurement requires absolute professionalism in measuring and control technology. In industrial processes or in research-based business, the testo 6681 temperature and humidity transmitter is ideal wherever critical climatic values need to be maintained. The climate transmitter boasts a high-precision humidity sensor with long-term stability (optionally available), which enables it to achieve maximum precision: up to ±(1.0 + 0.007 * reading).

Precise measuring and control technology will help you to accurately optimize the climatic conditions in your rooms in order to prevent process disruptions and quality losses. Automation systems result in particularly efficient processes. The testo 6681 temperature and humidity transmitter can easily be integrated into individual automation systems because it features Ethernet, relay and analog outputs.

Areas of application for the testo 6681 temperature and humidity transmitter

-  Drying processes (e.g. drying tobacco, manufacturing ceramics, drying roofing tiles)
-  Painting installations
-  Food production (e.g. cheese processing, ripening fruit, drying pasta)
-  Bio-research
-  Breeding mushrooms
-  High-humidity specialist fields
-  Sterilization processes in an H2O2 environment
-  Clean rooms
-  Museums
-  Storing hygroscopic substances
-  Storing electronic components

Technical highlights of the testo 6681 climate transmitter

-  High-quality digital probes available for the temperature and humidity transmitter: e.g. high-precision Testo humidity sensor with long-term stability, probe for high-humidity measurement, probe for trace humidity measurement, probe with a self-monitoring function (for measuring in sensor-damaging media)
-  Smart probe technology: probe can be changed by the user, digital interface for the temperature and humidity transmitter, intelligent calibration concept
-  Ethernet, relay and analog outputs allow for versatile use of the temperature and humidity transmitter: e.g. for control purposes (2 or optionally 3 analog outputs), for direct activation of units in the air conditioning system (optionally via relay) or even in climate monitoring systems (optionally via Ethernet connection)
-  P2A software for parametrization, adjustment and analysis saves time and money during commissioning and maintenance
-  Optimum protection: the climate transmitter features a robust metal housing and is protected against water jets according to protection class IP 65. Protective caps are also optionally available for specific applications (made of stainless steel, PTFE, wire mesh filter or metal). A patented H2O2 protective cap is also available to order
-  2-line display: the climate transmitter is optionally available with a display, enabling you to undertake commissioning, adjustment and analysis without using a PC
-  Options for self-monitoring and early warning function: guarantees high system availability

In combination with the right probe, the testo 6681 temperature and humidity transmitter offers superior properties and benefits in comparison with a conventional climate transmitter because, when it comes to temperature and humidity measurement, this instrument features supreme, cutting-edge technology.

Note: Please note that the transmitter can only be operated with a probe. The probes are optionally available.

Delivery scope:
testo 6681 temperature and humidity transmitter with selectable signal outputs, 2-line display (optional), Ethernet/Profibus module (optional), output of all relevant humidity variables, relay (optional), 3 analog outputs (optional).

testo 6743

Dewpoint transmitter.


USP's:
Measurement of norm volume flow in the measuring range 0.25 to 700 m3/h (DN15 to DN50 or ½’’-2’’); consumption quantity in m3; media temperature in °C <br> Highest flexibility thanks to different signal outputs:
- Analog output 4 to 20 mA (4-wire)
- Pulse output
- 2 switch outputs (parameterizable: consumption or volume
flow-dependent, opener, closer, hysteresis, window) <br> Built-in totalizer, even without additional analysis unit <br> Operating menu with LED display.

Long description:
In industrial companies, compressed air is an important source of energy, but one which can also incur high costs. Precise measuring and control technology creates transparency when it comes to compressed air consumption and can help you save energy, reduce costs and implement a targeted environmental management system (e.g. as per ISO 50.001 or ISO 14.001).

The testo 6441 compressed air flow meter enables you to carry out accurate compressed air consumption measurements, consumption and leak monitoring and flow measurements in your compressed air system. The compressed air flow meter can also be used to carry out a peak load analysis in order to determine whether you are generating compressed air of sufficient capacity. Overall, these measures can help you find potential for savings or prevent unnecessary investment costs.

Overview of the technical advantages offered by the testo 6441 compressed air flow meter

The testo 6441 compressed air flow meter is also a transmitter, which converts the measured parameter into a standardized electrical signal. The transmitter can therefore be integrated into systems (e.g. compressed air systems), making it a key instrument in measuring and control technology. The testo 6441 compressed air flow meter also offers the following advantages:

-  Ultimate flexibility with a variety of signal outputs: analog output, pulse output, 2 switching outputs. You will therefore be equipped for any kind of application, whether that is consumption measurement, consumption or leak monitoring or even flow measurement
-  Integrated totalling function: the practical totaliser means that no additional analysis units are needed to calculate the total consumption
-  Ultimate accuracy: the precisely defined inner diameter (DN15) enables adjustment to standard volumetric flow, providing a high degree of measuring accuracy. This is an advantage compared with standard penetration probes, which calculate volume flow on the basis of measured flow and indicated pipe diameter – a procedure that is more vulnerable to error than measurement using the compressed air flow meter
-  Easy operation with a high degree of flexibility: parametrization of signal outputs, switching of physical units, signal delay, signal attenuation are all possible
-  Measurement according to the calorimetric principle: no pressure loss during measurement
-  Other advantages: no temperature compensation required, quick response time, robust sensor, optimized accuracy thanks to integrated inflow and outflow sections.

Delivery scope:
testo 6441 compressed air flow meter with integrated inflow/outflow section, diameter DN15 (½"), with analog, pulse and switching output.
